Aero 360º

Speed is built layer by layer. By questioning everything that holds you back. Exploring every angle. Going beyond what is expected. Always searching and always improving. It is the relentless pursuit of every advantage.
It’s hard to beat the sensation of power that comes from a great aero bike. What rider is ambivalent about a machine that gives back free watts? Taking Orca Aero to the next step meant rethinking aerodynamics, going beyond the windtunnel, and examining every angle to create real-world advantages. Not just in the frame, but in how the rider and machine work together. All of this adds up to a significant 21W saving over the previous bike.
Imagen de fondo

Get the highlights

Imagen de fondo

A Different Approach to Aero

Rethinking aerodynamics beyond the wind tunnel led us to create the new Orca Aero, built for speed at real-world wind angles.
Imagen de fondo

Faster Together

Speed comes from how efficiently rider and bike work together. By optimising stability, precise positioning, and power transfer, wasted energy is reduced and performance maximised.
Imagen de fondo

Future Racing Standards

Designed for modern racing and shaped by the evolving pursuit of speed, built with forward-thinking solutions that anticipate changing standards and new ways to go faster.

A Different Approach to Aero

With aero performance already highly optimised, meaningful gains require a new approach. Instead of chasing results at a single wind angle, development is focused on real-world conditions, where crosswinds and varying yaw angles dominate. This leads to aerodynamic efficiency that holds up outside the wind tunnel, translating performance directly into speed on the road.

Aero in Every Corner

Seeking the most aerodynamic advantages meant going over every piece of the frame and optimising millimeter by millimeter.

Aero in Every Corner

Seeking the most aerodynamic advantages meant going over every piece of the frame and optimising millimeter by millimeter. We focused first on frontal drag, identifying the areas that create the most resistance. By refining these high-impact zones, we reduced drag where it matters most.

¿Cómo lo conseguimos?

Imagen de fondo

Head Tube

The sharpest, narrowest head tube possible for a standard fork design reduces frontal area without resorting to complex or offset solutions. This system supports a broader size range, meets UCI regulations, and saves on weight compared to more complicated alternatives. The height is reduced as a result of the lowered bottom bracket.
Imagen de fondo

Fork

The fork is carefully profiled to align with the downtube, ensuring a smooth airflow transition even at varying yaw angles. This approach avoids optimisation for a single head-on condition, preserving aerodynamic efficiency in crosswinds. We maintain enough clearance for a wide range of tire widths, without resorting to oversized fork profiles that compromise aerodynamic performance.
Imagen de fondo

Downtube

A slightly wider downtube is shaped to manage airflow efficiently, ensuring aerodynamic performance is preserved across the frame’s largest surface. Particular focus was placed on performance at 5–20° yaw angles, which account for the majority of real-world crosswind conditions.
Imagen de fondo

Bottom Bracket Keel

Building on the previous Orca Aero frame, we extended the bottom bracket keel to enhance its aerodynamic contribution. This refined lower structure manages airflow around the frame’s underside, reducing drag in a key transition area.
Imagen de fondo

Seat Tube and Seat Post

Strategically moving the Di2 battery to the lower part of the frame allowed us to create a slimmer profile for both the seat tube and seat post. This change reduces drag compared to the previous generation while maintaining structural efficiency through the centre of the frame.
Imagen de fondo

Seat Stays

Slimmer seat stays with lower junction points optimise stiffness and weight while introducing a touch of vertical compliance.
Imagen de fondo

Minimal Rear Dropout Design

A compact rear dropout optimised around the UDH standard reduces weight while improving integration. Discreet Di2 cable routing keeps the rear triangle clean and uncluttered.

Validated Gains

Aerodynamic development doesn’t stop at design. Every aerodynamic refinement is challenged and verified before making it onto the final bike.
Imagen de fondo

Wind Tunnel Proven

Aerodynamic gains initially developed through CFD analysis on the previous bike are validated in the wind tunnel using fairings. Repeatable, real-world conditions ensure those gains translate into performance riders can experience on the road.
Imagen de fondo

High Speed Efficiency Test

In this test, riders maintain a series of fixed speeds and we measure their power output. An indoor velodrome provides constant, repeatable conditions so the only change is the aerodynamics. This makes it possible to calculate the real-world impact of aerodynamic drag, in Watts, for any given speed.

Engineered as One System

Working with OC and OQUO from the start, every component is developed together to ensure seamless airflow around the system.

Engineered as One System

Aerodynamic performance is the result of engineering every element to work together as a single system. That means optimising interfaces between components and creating modern aero solutions, turning essential components into aerodynamic advantages.

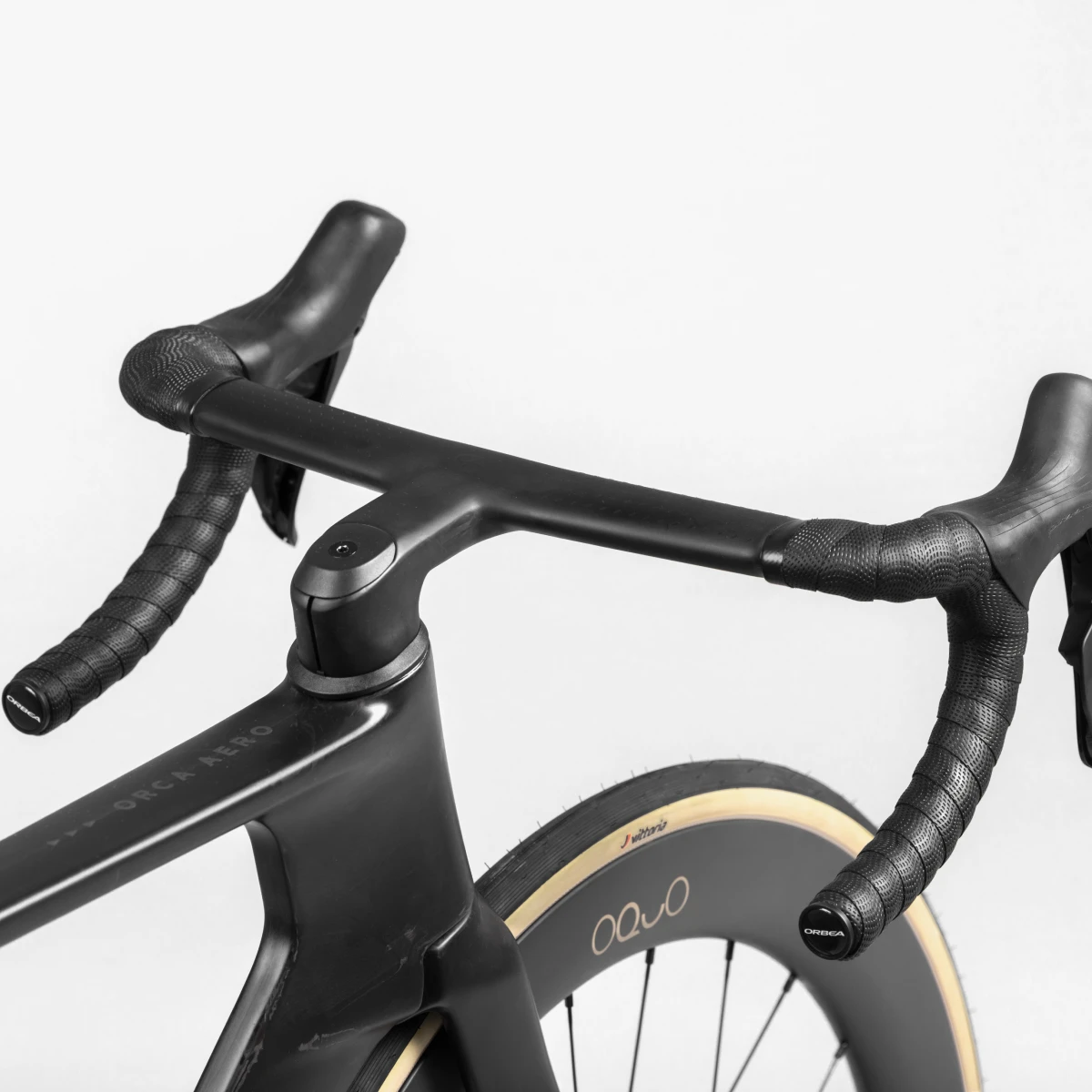

Integrated for Speed

The OC RA10 Carbon Cockpit is exceptionally light, combining fully internal routing, ergonomic tops and sprint-ready stiffness in one seamless system.
Imagen de fondo

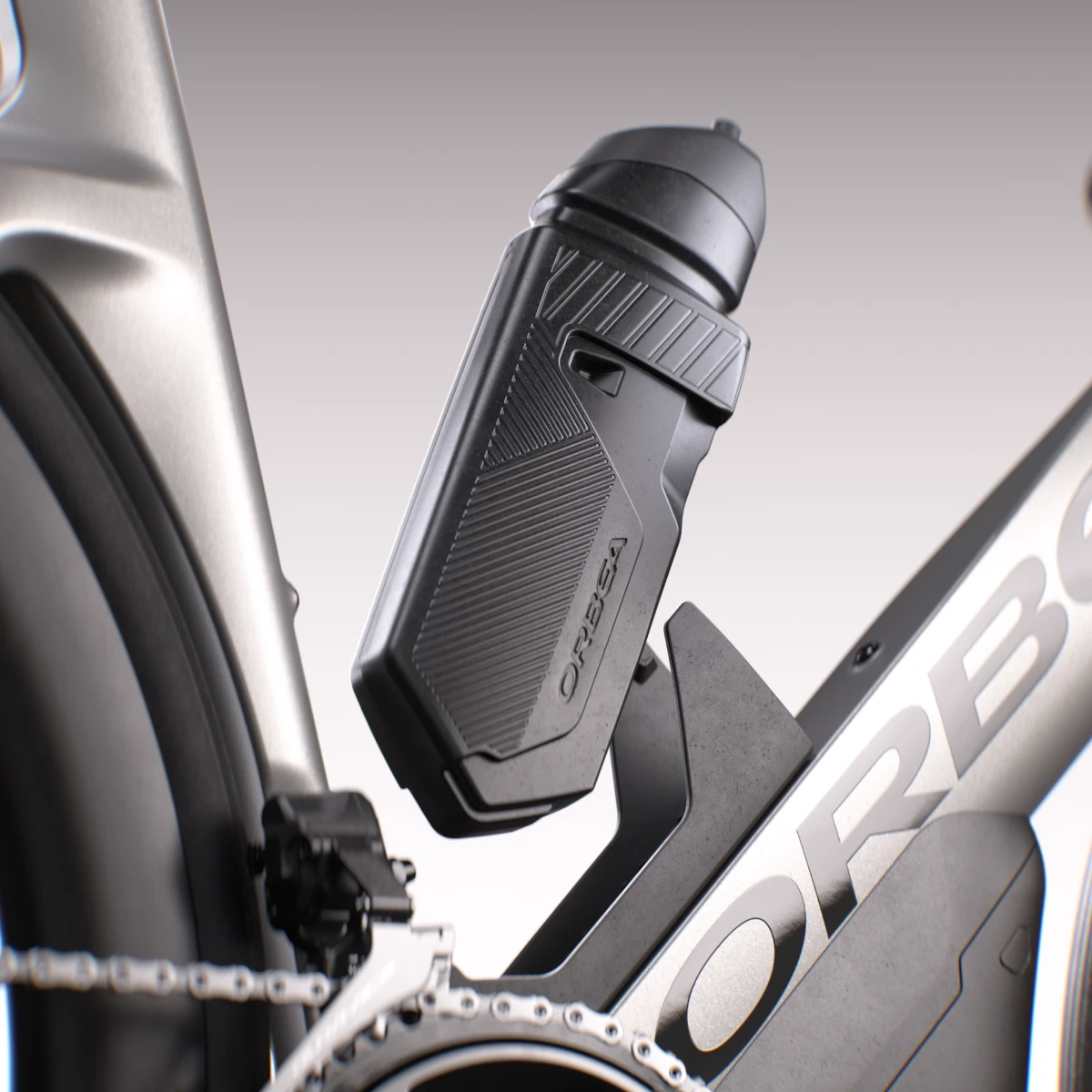

Flush Bottlecages

New cages have been positioned lower in the frame and carefully shaped to be flush for seamless airflow around the downtube and seat tube.
Imagen de fondo

Service Box

The age-old question of where to carry essential tools, tubes and identification is answered by the integrated Service Box. Not only useful but aerodynamically beneficial, the Service Box is shaped to follow the wheel and frame profiles to create a continuous form.

Unified Design

The new low-stack seatpost and saddle together improve aerodynamic efficiency by minimizing the gap between rider and bike.
Imagen de fondo

OC RA11 Aero Seatpost

A lightweight aero-profile seatpost with low-stack clamping designed to reduce drag. Precise adjustment and universal saddle compatibility ensure a clean, integrated setup.
Imagen de fondo

Low Stack saddle

Developed in special collaboration with Fizik, this discreet, low-profile saddle integrates cleanly with the seatpost.

The Competitive Edge

The Orca Aero frame was engineered around the OQUO RA57 LTD CS wheel profile to optimise airflow around the bike for greater aerodynamic efficiency.
Imagen de fondo

Wheel-downtube Integration

The downtube shape is designed to closely match the front wheel, creating a smooth airflow transition and reducing turbulence at the wheel–frame interface. Specifically engineered in collaboration with OQUO to be the most efficient with the RA57 LTD wheels.
Imagen de fondo

Selected For Speed

Stiff, lightweight and aerodynamic to deliver top performance on the flat and in sprints. The RA57LTD CS wheel has a 57 mm rim with an internal width of 23 mm. The carbon spokes increase stiffness for explosive accelerations, while their 5.2 mm flat profile yields aerodynamic gains. The optimised rim profile reduces rolling resistance and increases stability in crosswinds. All at a highly competitive weight of just 1373 g.

Faster Together

Speed comes from efficiency. By optimising stability, precise positioning, and power transfer, wasted energy is reduced and more of the rider’s effort drives the bike forward. A lower centre of gravity improves control, race-focused geometry supports a stable position at speed, and a high stiffness-to-weight frame ensures efficient power application.
Imagen de fondo

Stable Race Handling

A stable bike is an efficient bike. A lower centre of gravity, refined geometry, and precise positioning reduce unwanted movement, helping maintain speed with less wasted effort.
Imagen de fondo

Power Transmission

Engineered for rigidity where it counts and power transfer you can feel. From our cutting-edge OMX carbon layup to size-tuned stiffness, every detail is refined to make you faster.
Imagen de fondo

Improved Stiffness to Weight

Refined carbon construction delivers increased stiffness without added weight to create a more efficient platform that rewards every effort.

Stable Race Handling

A stable bike is an efficient bike. A lower centre of gravity, refined geometry, and precise positioning reduce unwanted movement, helping maintain speed with less wasted effort.
Imagen de fondo

Drag eliminated on the flat by eliminating instability

-14W at 50kmph

Lower Centre of Gravity

One of the lowest bottom brackets in its class lowers the center of gravity, creating a more planted and stable ride. By positioning the rider deeper within the bike, side-to-side movement is reduced, allowing a straighter line and minimizing energy lost to lateral movement. This lower position also helps reduce frontal exposure to the wind.
Imagen de fondo

Race Geometry

Race geometry prioritizes stability and responsiveness at speed, delivering confident handling through fast corners, descents, and high-pace riding.
Imagen de fondo

Stack & Reach

A low stack and long reach create a performance-focused riding position, supporting an efficient posture and stability at speed.
Imagen de fondo

Size-specific Trail

Size-specific fork trail gives optimum control no matter what frame size.

Performance, in Millimeters

Fit accuracy is a performance factor. Seatpost options, clamp design, and ample cockpit sizing allow riders to dial in their position with precision.

Two Low-Stack Seat Posts; more Setback range

Choose between two seatpost options, 0/10 seatpost and 15/25 seatpost. The reversible clamp provides maximum range, with 10 mm of adjustment, making it easy to find the perfect position.
Imagen de fondo

Streamlined Saddle Clamp

A lightweight saddle clamp uses a simple two-bolt design to deliver secure, precise adjustment with minimal complexity. The system allows independent tilt and setback adjustment.
Imagen de fondo

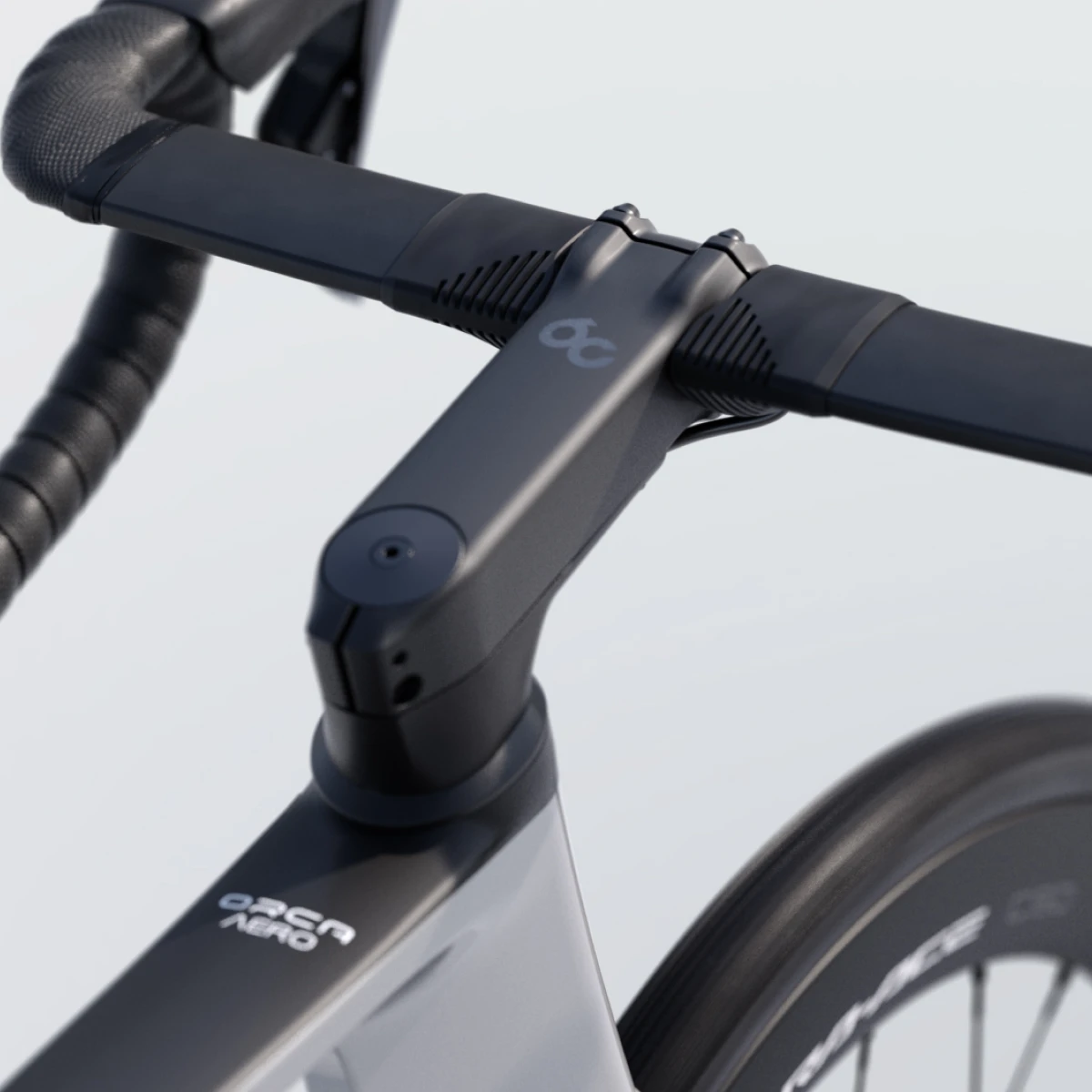

Precise Fit Cockpit

The OC SH-RA10 integrated cockpit is available in 13 sizes of handlebar width and stem length combinations, ensuring a precise fit tailored to the rider’s body.

Power Transmission

Engineered for rigidity where it counts and power transfer you can feel. From targeted stiffness in key frame zones to size-tuned stiffness, every detail is refined to make you faster.
Imagen de fondo

Core Strength

An enlarged downtube–bottom bracket junction increases global frame stiffness, improving power transfer under pedaling load.
Imagen de fondo

Powerspine

A slightly wider downtube reinforces stiffness along the main load path, improving efficiency during sustained pedaling.
Imagen de fondo

Size-Tuned Stiffness

Larger frames naturally flex more, yet bigger riders need more support. Our size-tuned stiffness ensures every frame feels equally responsive and efficient.
Imagen de fondo

Efficient, not uncomfortable

With special shaping of the rear triangle and greater seatpost exposition, we engineer some vertical compliance into the ride. It doesn't detract from efficiency but does have a noticeable impact on comfort.

Efficiency Tested

Controlled testing helps determine how engineering decisions affect power transfer. In the Low Speed test, riders maintain a fixed speed on a steep climb while we measure power output. By only changing the frame and keeping all the other variables constant, we can determine how efficient the power transfer is for each frame.
Imagen de fondo

Power savings on an 8% climb

2W

Stiffness to Weight

As rider power output continues to rise with the increasing level of the sport, so do the forces acting on the frame, requiring greater stiffness to maintain efficiency. We achieve this increase in stiffness without adding weight, through refined carbon layup and material selection.
Imagen de fondo

Global Frame Stiffness

Weight alone does not define performance. Global frame stiffness determines how effectively power is transferred, ensuring effort is converted into speed rather than lost to flex. At 900 g with 93 Nmº stiffness, structural efficiency is prioritized over chasing the lightest possible number for an aero frame. The overall stiffness to weight ratio from the previous generation has improved 27.5%.

Frame

900 g

Fork

410 g

Seatpost

160 g

New Carbon Layup

A purpose-developed carbon layup applies premium Toray carbon fibers through optimised orientation and layering to achieve a high stiffness-to-weight ratio.
Imagen de fondo

Lightest, strongest, OMX Carbon

OMX carbon is only used for our lightest, stiffest performance racing frame, the pinnacle of carbon fiber bicycle manufacturing.

Future Racing Standards

Racing continues to evolve as new insights shape speed. Orca Aero is built to go beyond current limits, with forward-thinking solutions that anticipate what comes next. Increased tyre clearance supports wider, faster setups, while thoughtful integrations improve reliability and compatibility, ensuring the bike keeps its competitive edge as racing evolves.
Imagen de fondo

Room to Go Faster

Design optimised around modern race tyres, with extra clearance to adapt as racing continues to evolve.

Room to Go Faster

Optimised around the fast, grippy 29-35mm tyres trusted by the pro peloton, with clearance for wider, more compliant options. A total of 37 mm (35C*), plus a 5 mm safety margin, reaches the upper limits of UCI race-legal road design, future-proofing the frame for evolving tire choices without sacrificing race focus.
Imagen de fondo
Imagen de fondo

Free Watts

The WorldTour bike with the biggest tyre clearance gives 6-7w at 40km/h saving on cobbles or rough terrain.
Imagen de fondo

Integrated Beyond Aerodynamics

Smart integrations work behind the scenes so nothing gets in the way of performance.

Integrated Beyond Aerodynamics

The best integrations are the ones you rarely notice. Every detail is designed to disappear into the bike and quietly make it better.

Spinblock

Our first Road bike to have this feature with a 90º turning limit, key protection because of the shape of the fork. This avoids over-rotation and potential paint damage, structural frame damage or safety hazards.
Imagen de fondo

Di2 Battery solution

Tucked in just above the bottom bracket, the Di2 battery is fully shielded from airflow and easily accessible for maintenance.
Imagen de fondo

Internal Seat Post Clamp

Discreet and aerodynamic, the integrated clamp system keeps the lines clean, with hassle-free adjustment.
Imagen de fondo

Service Case

Designed to fit perfectly into the Service Box, this soft case has specific spaces dedicated to holding your necessities snug in place.
Imagen de fondo

UDH Compatible

Universal Derailleur Hanger compatibility ensures wide drivetrain versatility and simple replacements, keeping your setup smooth, secure, and ready for whatever comes next.
Imagen de fondo

Fork Bumper Protection

Integrated rubber bumpers at the fork tips protect both paint and carbon when the bike is placed on the ground.
